A rotary valve is a type of valve where the rotation of a passage or passages in a transverse plug regulates the flow of liquid or gas through the connected pipes. The common faucet is the simplest form of rotary valve. Rotary valves have been applied in a variety of applications including: Changing the pitch of brass instruments.

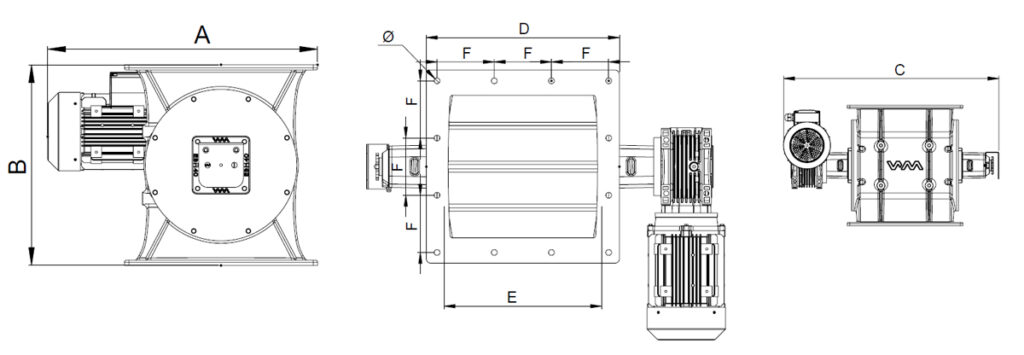

Technical Drawing
Dimensional Table
| MODEL | ∅ | A | B | C | D | E | F | KW |
|---|---|---|---|---|---|---|---|---|
| DRV200 | ∅12 | 479 | 314 | 643 | 315 | 220 | 93,3 | 0,75 |
| DRV250 | ∅12 | 504 | 360 | 718 | 365 | 270 | 110 | 0,75 |
| DRV300 | ∅14 | 661 | 467 | 843 | 430 | 320 | 128,3 | 1,5 |
| DRV400 | ∅14 | 693 | 548 | 1057,5 | 520 | 400 | 96 | 2,2 |
| MODEL | ∅1 | ∅2 | ∅3 | ∅4 | A | B | C | KW |
|---|---|---|---|---|---|---|---|---|
| DRV200 | 340 | 210 | 295 | 22 | 492 | 355 | 630 | |
| DRV250 | 395 | 265 | 350 | 22X12 | 588 | 450 | 788 |
