Motor Shaft
It is used with router together with the gear milling side It is suitable for easy disassembly system. It is used in bearings on the drive gear and end bearing side.

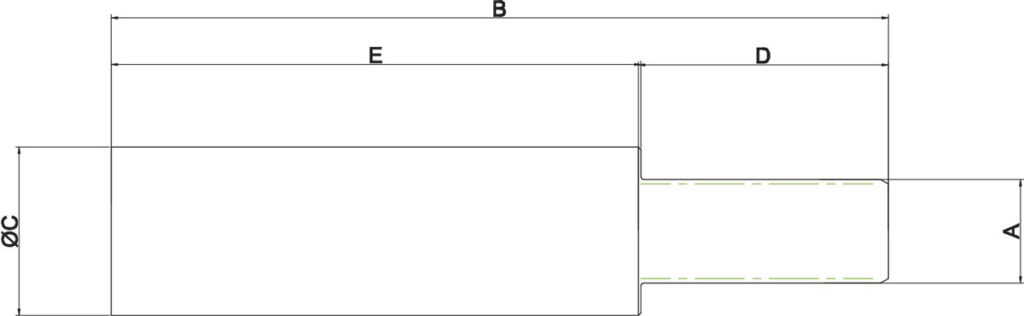

Technical Drawing
Dimensional Table
| Product Code | Item | Thread | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| WM-FM5040210 | Male Threaded (50-40) x 210mm | 20 | 40×36 | 210 | 50 | 95 | 115 |
| WM-FM5040310 | Male Threaded (50-40) x 310mm | 20 | 40×36 | 310 | 50 | 95 | 215 |
| WM-FM5540430 | Male Threaded (55-40) x 430mm | 20 | 40×36 | 430 | 55 | 85 | 345 |
| WM-FM6540250 | Male Threaded (65-40) x 250mm | 20 | 40×36 | 250 | 65 | 95 | 155 |
| WM-FM6540300 | Male Threaded (65-40) x 300mm | 20 | 40×36 | 300 | 65 | 95 | 205 |
| WM-FM6560400 | Male Threaded (65-60) x 400mm | 28 | 60×55 | 400 | 65 | 110 | 290 |
| WM-FM6560470 | Male Threaded (65-60) x 470mm | 28 | 60×55 | 470 | 65 | 110 | 360 |
What is a Motor Shaft?
A Motor Shaft is used in conjunction with a female spline. Motor shafts are utilized on both the drive and tail ends of the bearings.
In standard Cement Conveyors (Screw Conveyors), because the gearbox speed is high, processing splined shafts specifically on a lathe to create a detachable system facilitates the operations required to adjust the tonnage.
To ensure that production does not stop in the event of future malfunctions in Cement Conveyors (Screw Conveyors), and to make maintenance fast and clean, splined shafts and compatible female splines are used. This allows maintenance to be completed in the shortest possible time.
The Motor Shaft is suitable for easy assembly and disassembly systems. They are currently available in our WEKA MÜHENDİSLİK MAKİNE stocks.
